FLATSCAN SW

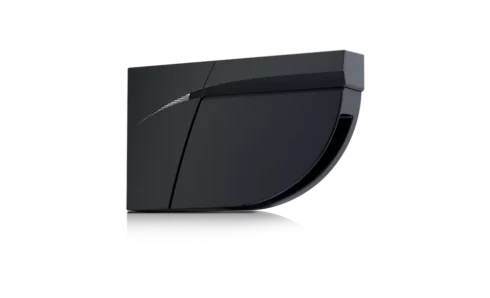

LZR‑FLATSCAN SW is a laser-based Time‑of‑Flight presence sensor designed for automatic pedestrian swing doors.

Works as a stand‑alone safety sensor for full‑ and low‑energy swing doors. Can also function as a reactivation sensor on the approach side of low‑energy doors.

Flatscan SW Features

• Generates 170 detection points across a single curtain to cover the entire door face, including the hinge area.
• Finger Detection Technology™ uses 100 detection points specifically in the hinge area to protect hands and fingers.
• Exceeds ANSI 156.10 section 8.2.2.3 for detection area and meets section 8.1.4 for monitoring.

Notable Capabilities

• Hand Gesture Setup™ allows quick door‑width programming without tools.
• Detection area extends beyond the leading edge of the door for enhanced safety.
• Reduced uncovered zone down to ¾ inch thanks to laser precision.
• UL10B/C fire‑rated for up to one hour.
